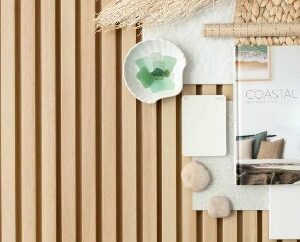

Castellation Cladding Board
Castellation cladding has become a popular architectural trend in both commercial projects and stylish contemporary residential designs. On a façade, it achieves a look of parallel castellated timber battens with a narrow shadowland, or rebate, between each one. The 3-rib (UH58) and 5-rib (UH61) castellation cladding panels are available in a range of modern colours, which provide a multidimensional, visually appealing addition to any building project. Thanks to the complementary end trims, panels can be installed quickly and easily, either horizontally or vertically.
NewTechWood castellation cladding provides the natural appearance of real timber and is extremely low-maintenance. It is an attractive alternative for creating a stylish external facade, screening, or as a ceiling treatment.
NewTechWood’s Castellation 196mm 5 rib panel (UH61) & 3 rib panel (UH58) can be installed quickly and easily, either horizontally or vertically. Accessories are provided to facilitate a neat and perfectly finished result.
The AW08 cladding clip holds the UH61 & UH 58 Castellation boards in place securely. The clip connects the boards, raising them from the joist framework. This allows for air to circulate between the cladding and the joists, isolating water from outside and keeping the inside dry. The AW08 clip system also allows the boards to expand and contract. With the addition of a screw, it can be used as a locking clip to control the direction of the expansion and contraction.
End Trims are used to finish off the outside corners or around windows: UH61 = UH50 & UH58 = UH59
Outside Corner Trims are used when two boards meet at an exterior corner: UH61 =UH51 & UH58 = UH60
